Description
TYPICAL APPLICATIONS

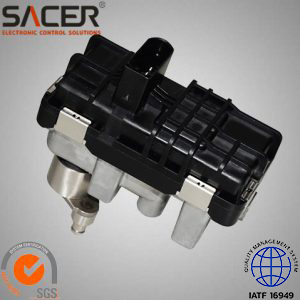

SACER SA1160 Smart Electronic Actuators are typically used for Garrett VNT turbo (applications such as passenger car / LDV duty diesel engines to help provide optimum performance and enable compliance with current and future exhaust emissions standards.
A(SREA)/D(REA)
A
G NO./6NW NO.
6NW010430-01
Garrett Turbo NO.
ET052V40A2241-0
Connector position
middle
Make/Model
For Mini 2010->
Features
Lever angle tolerance ≤ +/-1.5degree
Lever clearance tolerance ≤+/- 1.75 degree
Lever move torque ≥ 2.5 Nm
High quality laser welding
Power supply : DC 14V (Range: 10.5V to 16V)
Temp. range(Operation): -40℃ to +125℃
Temp. range(Storage): -40℃ to +150℃
Quality control
Full function OQC test and confirm for every unit.
2 years Full European Warranty
Finish full function test, temperature test, endurance test, drop test, vibration test, salt spray test, destructive test, EMC test.
