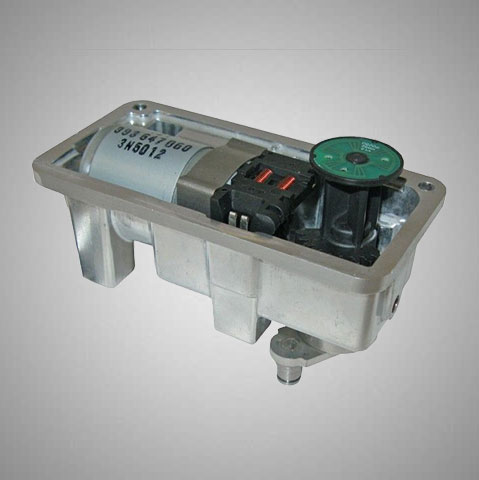

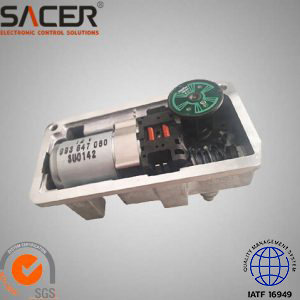

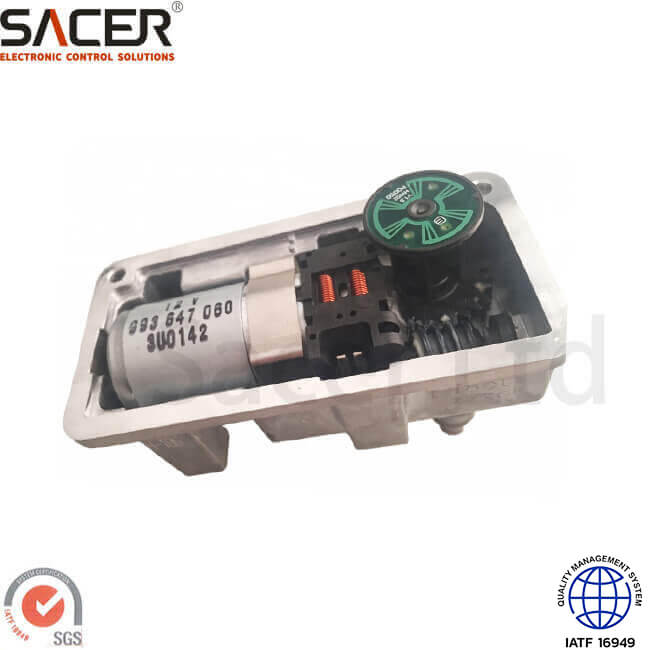

SA1130 Turbo Actuator Gearbox

Specification

  • Product name:Turbo Actuator Gearbox
  • Brand:Mercedes,Audi,VW,Kia,Ford,Citroen,Jaguar
  • Lever angle tolerance:≤ +/-1.5degree
  • Condition:New
  • Lever clearance tolerance:≤+/- 1.75 degree
  • Lever move torque:≥ 2.5 Nm
  • Power supply:DC10V to 15V
  • Temp. range: -40℃ to +125℃
  • Country/Region of Manufacture:China
  • Color:As pictures
  • Click here to see all SA1130 Turbo Actuator Gearbox Family Products
Category: SKU: SA1130

Description

The turbo actuator is part from a complete VGT
turbo assembly, made by Garrett. The original
turbo actuator has a short lifespan, and therefore
an extreme high failure rate. Often this turbo
actuator cannot be purchased separately, and if
the actuator breaks, a complete new turbo with
actuator assembly needs to be bought. The high
failure rate, mostly comes from wear in the two
plastic gears, causing to much friction, and results

in breakage from the DC motor. As one off the
gears that causes this problem is laser welded,
inside the gearbox, it is not possible to exchange
only both plastic gears and DC motor. Therefore
Sacer offers a reman solution in the shape off a
complete new actuator gearbox.
Brand new with self-developed patent & easily
plug and play.

DIAGNOSTIC FAILURE RATE FROM THESE TURBO ACTUATORS:

80%
have a mechanical failure in the Turbo
Actuator Gearbox. We offer these complete
high quality aftermarket Actuator Gearbox,
with a 2 year warranty.

20%
have an electronic failure in the control unit
(which is assembled in the black plastic cap).

IF YOU FOLLOW THESE SIMPLE STEPS FOR THE REPLACEMENT GEARBOX

THE UNIT WILL BE ASSEMBLED WITHIN 5 MINUTES

1. Remove clips.
2. Remove the control unit (black plastic cap)
from the Gearbox.
3. Place the new control unit (black plastic cap)
on the Gearbox (same Gearbox number).
4. Attach the six clips.
5. Perform a function test for complete
Actuator with a Turbo Actuator tester (for
example with the ATD-1 or the VNTT-pro).

Note: After the production of the Actuator
Gearbox at Sacer, each individual Gearbox is
fully tested. These tests include precise torque
testing. Therefore, expensive torque testing
is not needed anymore, when replacing
the Actuator Gearbox with our complete
aftermarket Turbo Actuator Gearbox assembly.

Product List

G277 HELLA Garrett Turbo Actuator Gearbox 752406 712120 765155 6NW009206 6NW009420 6NW008412 For 765155-5004S 765156-5004S 757608-5004S 761399-5002S 781743-5003S 770895-5002S Turbocharger – SA1130-G277-H20

Specification

  • Product name:Turbo Actuator Gearbox
  • Brand:Mercedes, Chrysler, Jeep
  • Lever angle tolerance:≤ +/-1.5degree
  • Condition:New
  • Lever clearance tolerance:≤+/- 1.75 degree
  • Lever move torque:≥ 2.5 Nm
  • Power supply:DC10V to 15V
  • Temp. range: -40℃ to +125℃
  • Country/Region of Manufacture:China

G219 HELLA Garrett Turbo Actuator Gearbox 712120 765155 6NW008412 6NW009420 For 765155-0007 765155-0004 765155-5004S 765155-0008 765155-5008S 765155-5007S 765156-5004S 757608-5001S 761399-5002S 781743-5003S 770895-5007S Turbocharger – SA1130-G219-H48

Specification

  • Product name:Turbo Actuator Gearbox
  • Brand:Mercedes, Chrysler, Jeep
  • Lever angle tolerance:≤ +/-1.5degree
  • Condition:New
  • Lever clearance tolerance:≤+/- 1.75 degree
  • Lever move torque:≥ 2.5 Nm
  • Power supply:DC10V to 15V
  • Temp. range: -40℃ to +125℃
  • Country/Region of Manufacture:China
