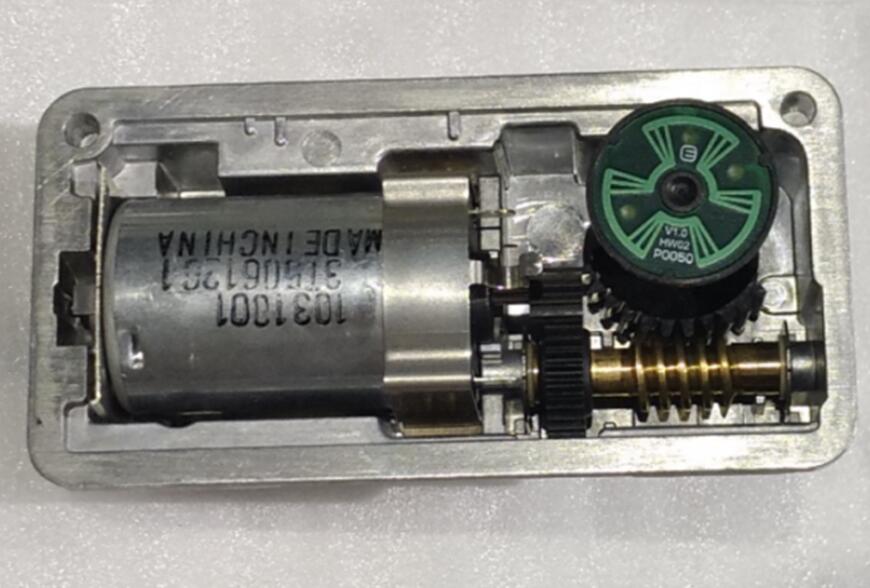

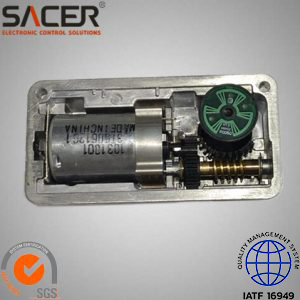

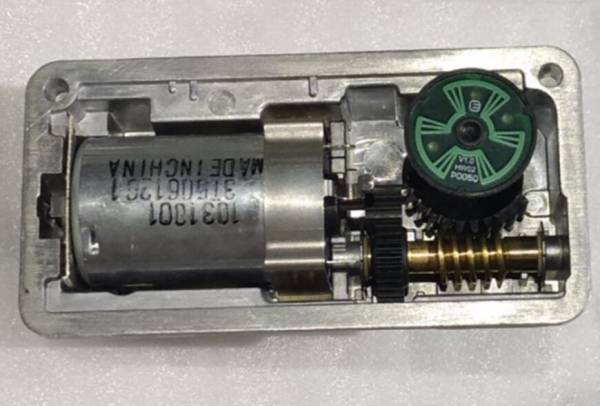

SA1143 – Turbo Electric Actuator Gearbox

SA1143 Turbo Actuator Gearbox
Electronic turbo actuator assembly with middle

SACER SA1143 Smart remote actuator is designed
for the small displacement engine application with
electronic control turbocharger, such as e-WGT,
e-VG turbo. Smart rotating position feedback module
and PWM interface feature provide high benefi ts for
turbocharger effective control.

Description

SPECIFICATIONS

Motor torque output:Up to 60Ncm (25°C)

Resolution:0.26°

Response time:<1.2ms

Rotation travel:up to 120°

Operating temperature range:-40°C to 125°C

Communication:PWM

Power input:10.5-16V

TYPICAL APPLICATIONS

SACER Smart Electronic Actuators are typically used for Garrett VNT turbo (applications such as passenger car / LDV duty diesel engines to help provide optimum performance and enable compliance with current and future exhaust emissions standards.

For Turbo application: Honeywell Garrett VNT turbocharger / BorgWarner BV VTG turbo

For Garrett VNT Turbo Model: GT20 / GT27

For BorgWarner BV turbo: BV40 / BV43

Application information: Implemented for BMW / Audi / VW / Ford / Mercedes-Benz / GM / etc.

popular diesel engine passenger cars More car type or model detail check to below “Make/models Select table”

VERSION

LDV duty diesel engines,A/D version,

D : Have D and A version: D = PWM version, A = Analogue version

Make/models Select table

SACER SA1142 NO. SACER SA1143 NO. SREA/REA OE NO. Parts NO. Car Make/Model, Engine Engine Code Years Turbocharger Model
SA1142-D-099-01 SA1143-099-01 REA 6NW 010 099-01 59001107185 Nissan Navara 2010-> N57D30S1 / N57D,N57X,N572.5 dCi 2011, 2012, 2013, 2014, 2015, 2016 BV45
SA1142-D-099-02 SA1142-099-02 REA 6NW 010 099-02 49335-19400 BMW 1/3/5 serie 2010->BMW X5 (E53) 3.0d (184 Hp)BMW 1,3 Series 2.0D N47N N47D20C 2010-2017 1165 724779 10NL
SA1142-D-099-08 SA1143-099-08 REA 6NW 010 099-08 59001107238 BMW 5 serie 2010->BMW 3.0D
SA1142-A-430-36 SA1143-430-36 SREA 6NW 010 430-36 823699-0006 Ford transit Custom 2012->

Note: if not available, we need original gearbox samples, for more information please connect our sales.
