• Application

This tool is applied to calibrate the angle of turbo actuator

  • Features
  • Material of housing:Aluminum anodized treatment color: black
  • Power supply : DC12V  4A
  • T range(Operation): -20℃ to +65℃
  • T range(Storage): -40℃ to +85℃
  • Quality control
  • Full function OQC test and confirm for every unit.
  • 2 years Full European Warranty
  • Finish full function test, temperature test, endurance test, drop test, vibration test, salt spray test, destructive test,EMC test.
Category: Product ID: 1209

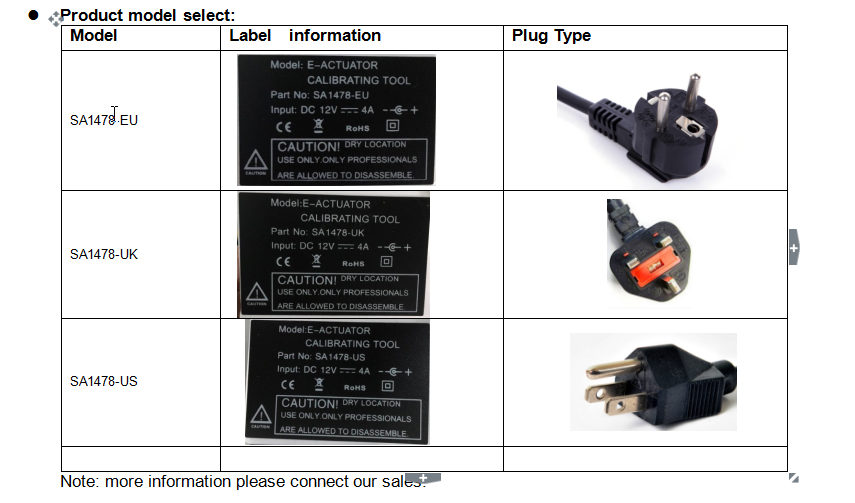

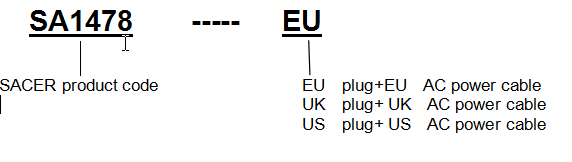

  • Explanation of Part Numbers

For example: SA1478-EU



  1. SA1478: SACER product code
  2. EU: There are 3 types of plug, respectively are EU plug, UK plug and US plug, here we take EU plug for an example: EU = EU plug+EU AC power cable , UK = UK plug+ UK AC power cable, US= US plug+ US AC power cable

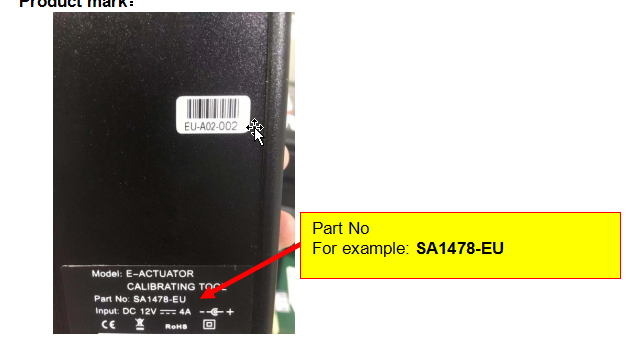

Product mark:


  • General purpose application

Refer to user manual

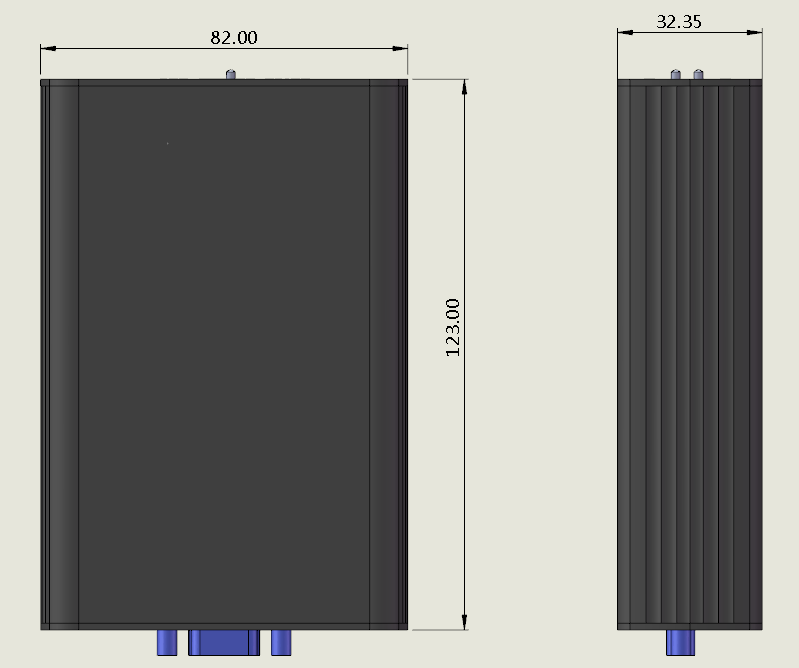

  • Dimension or outline information(unit: mm)

Get the software:  TACsetup-sacer
