SA1150 Smart Electronic Actuator

SMART ELECTRONIC ACTUATORS HDV
ELECTRONIC TURBO ACTUATOR

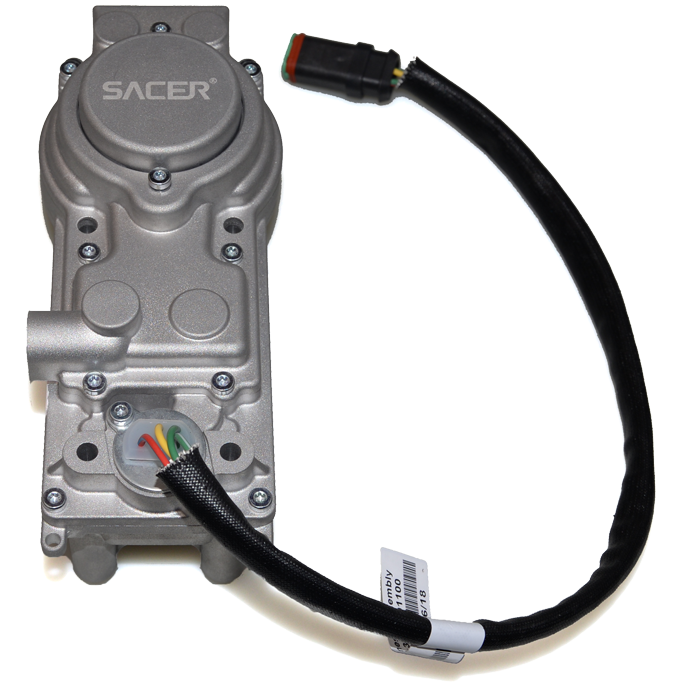

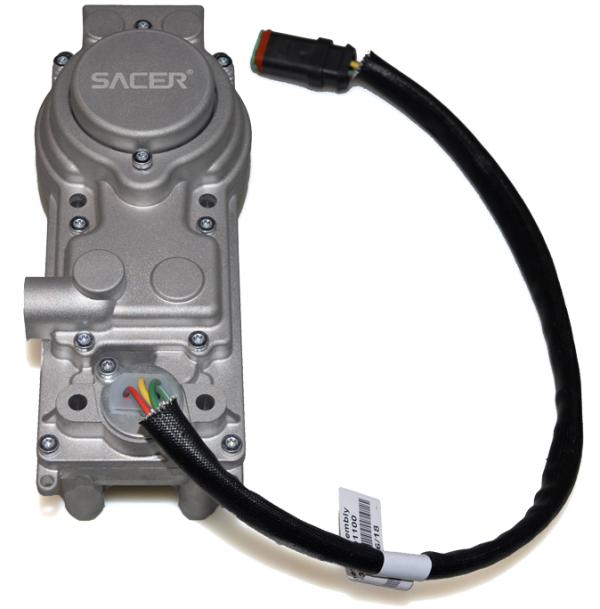

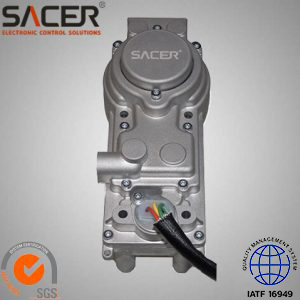

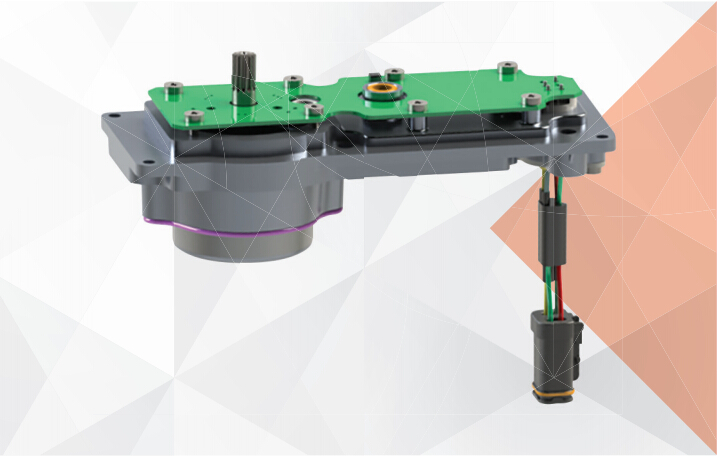

SACER SA1150 Smart Electronic Actuators (SEAs)
are electromechanical devices that actuate engine
features, such as variable geometry (VG) and dual stage
turbochargers. They also supply precise rotary position
feedback to the engine control unit, which is provided
by a controlled area network (CAN-protocol).

SKU: SA1150 Category: Product ID: 802

Description

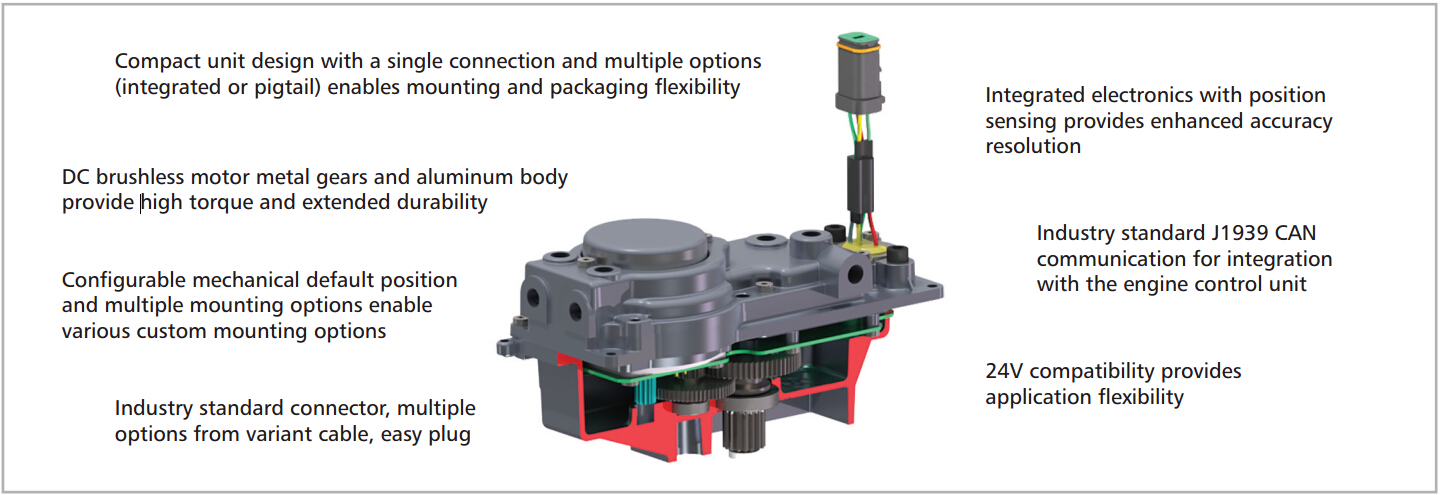

BENEFITS

SPECIFICATIONS

Peak torque output Up to 5.0Nm
Continuous torque output Up to 4.5Nm
Resolution 0.26°
Response time <120ms
Rotation travel up to 120°
Operating temperature range -40°C to 125°C
Communication CAN J1939
Power input 24V
Cooling system Water-cooling

TYPICAL APPLICATIONS

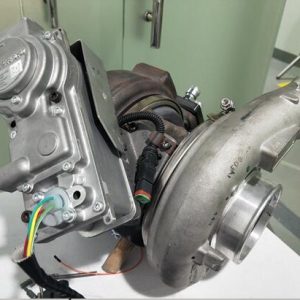

SACER Smart Electronic Actuators are typically used for
Holset VGT turbo (vane, applications, such as medium
duty and heavy duty diesel engines to help provide
optimum performance and enable compliance with
current and future exhaust emissions standards.

  • For turbo application: Cummins Holset VGT
    turbocharger
  • For Holset turbo models: HE400VG, HE451VE,
    HE500VG, HE561VE

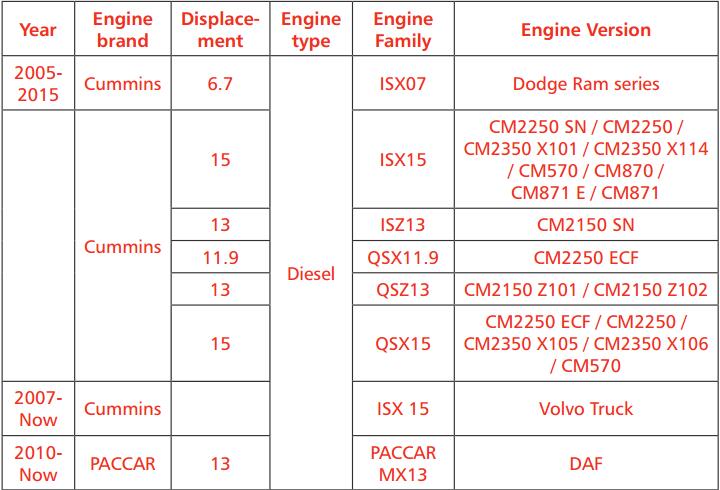

  • For engine models: see table.

Sacer SA1150 Electronic Actuator for Holset Application List

SACER
SA1150 No.
Actuator No HW No. Turbo Model Assy Holset No. Cust. Engine manufactor Engine model Vehicle manufactor Vehicle Type Power Rating
  3787657 3787662 HE500VG 3787490 2191701 SCANIA DLC6   TRUCK 370  – 490 HP
  3787657 3787662 HE500VG 3787491 2191700 SCANIA DLC6
  3787657 3787662 HE500VG 3787496 2191617 SCANIA DLC6   TRUCK
  3787657 3787662 HE500VG 3787499 2191616 SCANIA DLC6   TRUCK
  3787657 3787662 HE500VG 3787499 572901 SCANIA DLC6   TRUCK
  3787657 3787662 HE500VG 3787499 2191615 SCANIA DLC6   K BUSS
  3787657 3787662 HE500VG 3788467 2195992 SCANIA DP16
  3787657 3787662 HE500VG 5351441 2484276 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 5352708 2484276 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 5351442 2484277 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 5351443 2454858 SCANIA DLC6   AUTOMOTIVE 370 – 480 HP
  3787657 3787662 HE500VG 5351443 2454859 SCANIA DLC6   AUTOMOTIVE 370 – 490 HP
  3787657 3787662 HE500VG 5351444 2454847 SCANIA DLC6   AUTOMOTIVE 370 – 480 HP
  3787657 3787662 HE500VG 5351445 2454844 SCANIA DLC6   AUTOMOTIVE 370 – 480 HP
  3787657 3787662 HE500VG 5351445 2454845 SCANIA DLC6   AUTOMOTIVE 370 – 480 HP
  3787657 3787662 HE500VG 5351446 2454846 SCANIA DLC6   AUTOMOTIVE 370 – 480 HP
  3787657 3787662 HE500VG 3787494 2040425 SCANIA
  3787657 3787662 HE500VG 3787500 2191614 SCANIA
  3787657 3787662 HE500VG 3787500 2166023 SCANIA
  3787657 3787662 HE500VG 5351440 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 5456782 2475283 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 5456471 2459418 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 5456782 2663295 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 5456471 2663294 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 5323685 2428820 SCANIA DP16
  3787657 3787662 HE500VG 5323686 2428821 SCANIA DP16
  3787657 3787662 HE500VG 3795455 SCANIA DLC6   AUTOMOTIVE
  3787657 3787662 HE500VG 3790032 2238824 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 3794132 2284738 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 5323685 2284738 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 3794183 2284737 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 5323686 2284737 SCANIA DP16     530 HP
  3787657 3787662 HE500VG 3794194 2082224 SCANIA DLC6   BUS 370 – 490 HP
  3787657 3787662 HE500VG 3794194 2082223 SCANIA DLC6   TRUCK 370 – 490 HP
  3787657 3787662 HE500VG 3795453 2082219 SCANIA DLC6   K400  Buss
  3787657 3787662 HE500VG 3795453 2082215 SCANIA DLC6   TRUCK
  3787657 3787662 HE500VG 3795454 2082216 SCANIA DLC6   TRUCK
  3787657 3787662 HE500VG 3795455 2082217 SCANIA DLC6   AUTOMOTIVE
  3787657 3787662 HE500VG 3791927 2256526 SCANIA DLC6   COACH 370 – 490 HP
  3787657 3787662 HE500VG 3791927 2256525 SCANIA DLC6   TRUCK 370 – 490 HP
  3787657 3787662 HE500VG 3797203 2223255 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 5351440 2223255 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 3780955 2098986 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 3797203 2098986 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 5351440 2098986 SCANIA DC13   INDUSTRIAL
  3787657 3787662 HE500VG 3775706 2001909 SCANIA DP16     730 HP
  3787657 3787662 HE500VG 3776259 2157421 SCANIA DLC6
  3787657 3787662 HE500VG 3787490 2157421 SCANIA DLC6
  3787657 3787662 HE500VG 3770145 2033794 SCANIA DC1305
  3787657 3787662 HE500VG 3770146 2033795 SCANIA DC1305
  3787657 3787662 HE500VG 3770232 2035498 SCANIA DP16     730 HP
  3787657 3787662 HE500VG 3770230 2035499 SCANIA DLC6
  3787657 3787662 HE500VG 3776259 2091416 SCANIA DLC6   COACH 370 – 490 HP
  3787657 3787662 HE500VG 3787490 2091416 SCANIA DLC6   COACH 370 – 490 HP
  3787657 3787662 HE500VG 3776903 2040427 SCANIA DC1305
  3787657 3787662 HE500VG 3776903 2040423 SCANIA DC1305
  3787657 3787662 HE500VG 3776906 2040428 SCANIA DC1305
  3787657 3787662 HE500VG 3776906 2040424 SCANIA DC1305
  3787657 3787662 HE500VG 3776909 2040422 SCANIA DC1305
  3787657 3787662 HE500VG 3776912 2040425 SCANIA DC1305
  3787657 3787662 HE500VG 3776914 2040426 SCANIA DC1305
  3787657 3787662 HE500VG 3776916 2040430 SCANIA DLC6
  3787657 3787662 HE500VG 3776930 2040429 SCANIA DP16     730 HP
  3787657 3787662 HE500VG 3767662 1948298 SCANIA DP16     730 HP
  3787657 3787662 HE500VG 3772608 2059069 SCANIA DP16     730 HP
  3787657 3787662 HE500VG 3772994 1940939 SCANIA DP16     520 – 580 HP
  3787657 3787662 HE500VG 3780166 2112740 SCANIA DC13   INDUSTRIAL
  3787658 3787663 HE500VG 3788164 1901518 DAF MX-13   CITY BUS
  3787658 3787663 HE500VG 5356675 2117463 PACCAR MX11   TRUCK
  3787658 3787663 HE500VG 5356676 2117464 PACCAR MX11   TRUCK
  3787658 3787663 HE500VG 5356675 2114814 PACCAR MX11   TRUCK
  3787658 3787663 HE500VG 3791936 1959915 DAF MX-13
  3787658 3787663 HE500VG 5330077 1959915 DAF MX-13
  3787658 3787663 HE500VG 5355095 1959915 DAF MX-13
  3787658 3787663 HE500VG 3791937 1973273 DAF MX-13
  3787658 3787663 HE500VG 5355091 1973273 DAF MX-13
  3787658 3787663 HE500VG 3791938 1975197 DAF/PACCAR MX-13
  3787658 3787663 HE500VG 5330078 1975197 DAF/PACCAR MX-13
  3787658 3787663 HE500VG 5355096 1975197 DAF/PACCAR MX-13
  3787658 3787663 HE500VG 3789791 1941000 DAF/PACCAR MX-13
  3787658 3787663 HE500VG 3793914 1944763 DAF/PACCAR MX
  3787658 3787663 HE500VG 3792555 1944459 DAF/PACCAR MX-13
  3787658 3787663 HE500VG 3792556 1940999 DAF/PACCAR MX-13
  3787658 3787663 HE500VG 3792558 1944529 DAF/PACCAR MX-13
  3787657 3787662 HE500VG 3788028 22014306 VOLVO MD16 US04
  3787657 3787662 HE500VG 3788029 22014304 VOLVO MD16 US07
  3787657 3787662 HE500VG 3787501 22023362 VOLVO MD11
  3787657 3787662 HE500VG 3788030 22014303 VOLVO MD16 US07
  3787657 3787662 HE500VG 5324898 17455867 VOLVO A60   CONSTRUCTION
  3787657 3787662 HE500VG 3784759 22001090 VOLVO MD11
  3787657 3787662 HE500VG 3784760 22001091 VOLVO MD11
  3787657 3787662 HE500VG 5354876 22883069 VOLVO FM17
  3787657 3787662 HE500VG 5354950 22880310 VOLVO
  3787657 3787662 HE500VG 5354953 22880311 VOLVO
  3787657 3787662 HE500VG 5354956 22883063 VOLVO
  3787657 3787662 HE500VG 5354959 22883064 VOLVO
  3787657 3787662 HE500VG 5354962 22918825 VOLVO
  3787657 3787662 HE500VG 5355119 22918829 VOLVO MD13
  3787657 3787662 HE500VG 5357298 17475212 VOLVO A60   CONSTRUCTION
  3787657 3787662 HE500VG 5355090 22918818 VOLVO
  3787657 3787662 HE500VG 5452523 22918818 VOLVO FM17
  3787657 3787662 HE500VG 3793497 22017850 VOLVO MD16   ON HIGHWAY 750 HP
  3787657 3787662 HE500VG 5324034 22017850 VOLVO MD16   ON HIGHWAY 750 HP
  3787657 3787662 HE500VG 5353340 22017850 VOLVO MD16   ON HIGHWAY 750 HP
  3787657 3787662 HE500VG 3794151 22215769 VOLVO FM17
  3787657 3787662 HE500VG 5328863 22215769 VOLVO FM17
  3787657 3787662 HE500VG 5353324 22215769 VOLVO FM17
  3787657 3787662 HE500VG 3794166 22014306 VOLVO FM17
  3787657 3787662 HE500VG 3795052 22014306 VOLVO FM17
  3787657 3787662 HE500VG 5328859 22014306 VOLVO FM17
  3787657 3787662 HE500VG 5353323 22014306 VOLVO FM17
  3787657 3787662 HE500VG 3791448 22215690 VOLVO MD11
  3787657 3787662 HE500VG 5328841 22215690 VOLVO MD11
  3787657 3787662 HE500VG 5353348 22215690 VOLVO MD11
  3787657 3787662 HE500VG 3791443 22014303 VOLVO MD16
  3787657 3787662 HE500VG 5328843 22014303 VOLVO MD16
  3787657 3787662 HE500VG 5353330 22014303 VOLVO MD16
  3787657 3787662 HE500VG 3791444 22014304 VOLVO MD16
  3787657 3787662 HE500VG 5328855 22014304 VOLVO MD16
  3787657 3787662 HE500VG 5353331 22014304 VOLVO MD16
  3787657 3787662 HE500VG 3791446 22303591 VOLVO MD11
  3787657 3787662 HE500VG 5328856 22303591 VOLVO MD11
  3787657 3787662 HE500VG 5353336 22303591 VOLVO MD11
  3787657 3787662 HE500VG 3791887 22233320 VOLVO MD13
  3787657 3787662 HE500VG 5328861 22233320 VOLVO MD13
  3787657 3787662 HE500VG 5353338 22233320 VOLVO MD13
  3787657 3787662 HE500VG 3782353 21595178 VOLVO MD16 VOLVO TRUCK
  3787657 3787662 HE500VG 3782354 21595179 VOLVO MACK MD16 VOLVO MACK TRUCK
  3787657 3787662 HE500VG 3780905 21595169 VOLVO MD16 VOLVO TRUCK
  3787657 3787662 HE500VG 3791445 21595169 VOLVO MD16 VOLVO TRUCK
  3787657 3787662 HE500VG 5350510   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 5350518   CUMMINS ISX
  3787657 3787662 HE500VG 5350519   CUMMINS ISX
  3787657 3787662 HE500VG 5350536   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 5350537   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 5350539   CUMMINS ISX
  3787657 3787662 HE500VG 5350540   CUMMINS ISX
  3787657 3787662 HE500VG 5350542   CUMMINS ISX
  3787657 3787662 HE500VG 5350545   CUMMINS ISX
  3787657 3787662 HE500VG 5350611   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 5350486   CUMMINS ISX
  3787657 3787662 HE500VG 5350891   CUMMINS M11   AUTOMOTIVE
  3787657 3787662 HE500VG 3785127   CUMMINS QSX
  3787657 3787662 HE500VG 5350543   CUMMINS ISX
  3787657 3787662 HE500VG 3782635   CUMMINS ISX
  3787657 3787662 HE500VG 5359589   CUMMINS
  3787657 3787662 HE500VG 5359589   CUMMINS
  3787657 3787662 HE500VG 5359593   CUMMINS
  3787657 3787662 HE500VG 5355398   CUMMINS
  3787657 3787662 HE500VG 5354887   CUMMINS
  3787657 3787662 HE500VG 5354887   CUMMINS
  3787657 3787662 HE500VG 5355181   CUMMINS
  3787657 3787662 HE500VG 5355181   CUMMINS
  3787657 3787662 HE500VG 5355399   CUMMINS ISX 07   ON HIGHWAY
  3787657 3787662 HE500VG 5355401   CUMMINS
  3787657 3787662 HE500VG 5355401   CUMMINS
  3787657 3787662 HE500VG 5355397   CUMMINS
  3787657 3787662 HE500VG 5355397   CUMMINS
  3787657 3787662 HE500VG 5355402   CUMMINS
  3787657 3787662 HE500VG 5355402   CUMMINS
  3787657 3787662 HE500VG 5355396   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 5355396   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 5354744   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 5354886   CUMMINS
  3787657 3787662 HE500VG 5355400   CUMMINS
  3787657 3787662 HE500VG 5355400   CUMMINS
  3787657 3787662 HE500VG 5354893   CUMMINS
  3787657 3787662 HE500VG 5354893   CUMMINS
  3787657 3787662 HE500VG 5354739   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 5355182   CUMMINS
  3787657 3787662 HE500VG 5355182   CUMMINS
  3787657 3787662 HE500VG 5354739   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 5456420   CUMMINS ISL   MILITARY
  3787657 3787662 HE500VG 5456420   CUMMINS ISL   MILITARY
  3787657 3787662 HE500VG 5355399   CUMMINS ISX 07
  3787657 3787662 HE500VG 5355400   CUMMINS
  3787657 3787662 HE500VG 3798721   CUMMINS ISX
  3787657 3787662 HE500VG 3798716   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3798718   CUMMINS STA15   AUTOMOTIVE
  3787657 3787662 HE500VG 3798717   CUMMINS ISX
  3787657 3787662 HE500VG 3798719   CUMMINS ISX
  3787657 3787662 HE500VG 3798715   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3798720   CUMMINS ISX
  3787657 3787662 HE500VG 3785128   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 3792775   CUMMINS STA15   AUTOMOTIVE
  3787657 3787662 HE500VG 3795165   CUMMINS STA15   AUTOMOTIVE
  3787657 3787662 HE500VG 3792776   CUMMINS STA15   AUTOMOTIVE
  3787657 3787662 HE500VG 3795162   CUMMINS STA15   AUTOMOTIVE
  3787657 3787662 HE500VG 3792777   CUMMINS STA15   AUTOMOTIVE
  3787657 3787662 HE500VG 3795163   CUMMINS STA15   AUTOMOTIVE
  3787657 3787662 HE500VG 3792778   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3795166   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3792779   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3795167   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3792780   CUMMINS
  3787657 3787662 HE500VG 3795168   CUMMINS
  3787657 3787662 HE500VG 3792781   CUMMINS
  3787657 3787662 HE500VG 3795169   CUMMINS
  3787657 3787662 HE500VG 3792782   CUMMINS
  3787657 3787662 HE500VG 3795170   CUMMINS
  3787657 3787662 HE500VG 3792783   CUMMINS
  3787657 3787662 HE500VG 3795171   CUMMINS
  3787657 3787662 HE500VG 3792784   CUMMINS
  3787657 3787662 HE500VG 3795172   CUMMINS
  3787657 3787662 HE500VG 3792798   CUMMINS ISX
  3787657 3787662 HE500VG 3795164   CUMMINS ISX
  3787657 3787662 HE500VG 3792799   CUMMINS
  3787657 3787662 HE500VG 3795173   CUMMINS
  3787657 3787662 HE500VG 3791145   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 3791146   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 3791145   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 3791146   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 3791147   CUMMINS QSX   INDUSTRIAL
  3787657 3787662 HE500VG 3796099   CUMMINS QSX
  3787657 3787662 HE500VG 3796100   CUMMINS QSX
  3787657 3787662 HE500VG 3796099   CUMMINS QSX
  3787657 3787662 HE500VG 3796100   CUMMINS QSX
  3787657 3787662 HE500VG 3796101   CUMMINS QSX
  3787657 3787662 HE500VG 3796241   CUMMINS QSX
  3787657 3787662 HE500VG 3774619   CUMMINS
  3787657 3787662 HE500VG 3782638   CUMMINS
  3787657 3787662 HE500VG 3782639   CUMMINS
  3787657 3787662 HE500VG 3782640   CUMMINS ISX
  3787657 3787662 HE500VG 3782641   CUMMINS ISX
  3787657 3787662 HE500VG 3776666   CUMMINS
  3787657 3787662 HE500VG 3782643   CUMMINS ISX
  3787657 3787662 HE500VG 3770464   CUMMINS ISX2
  3787657 3787662 HE500VG 3771377   CUMMINS ISX
  3787657 3787662 HE500VG 3771378   CUMMINS ISX
  3787657 3787662 HE500VG 3771379   CUMMINS ISX
  3787657 3787662 HE500VG 3771380   CUMMINS ISX
  3787657 3787662 HE500VG 5353159   CUMMINS ISM
  3787657 3787662 HE500VG 5352714   CUMMINS ISX
  3787657 3787662 HE500VG 5352715   CUMMINS ISX
  3787657 3787662 HE500VG 5353186   CUMMINS ISX
  3787657 3787662 HE500VG 3774612   CUMMINS
  3787657 3787662 HE500VG 3774616   CUMMINS ISX
  3787657 3787662 HE500VG 3774617   CUMMINS ISX
  3787657 3787662 HE500VG 3774618   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3774622   CUMMINS
  3787657 3787662 HE500VG 3774611   CUMMINS ISX
  3787657 3787662 HE500VG 3782642   CUMMINS ISX
  3787657 3787662 HE500VG 3795161   CUMMINS ISX
  3787657 3787662 HE500VG 3780526   CUMMINS
  3787657 3787662 HE500VG 3774613   CUMMINS ISX
  3787657 3787662 HE500VG 3781160   CUMMINS ISX
  3787657 3787662 HE500VG 3774614   CUMMINS
  3787657 3787662 HE500VG 3774615   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3781161   CUMMINS ISX   AUTOMOTIVE
  3787657 3787662 HE500VG 3782636   CUMMINS ISX
  3787657 3787662 HE500VG 3782637   CUMMINS ISX   AUTOMOTIVE

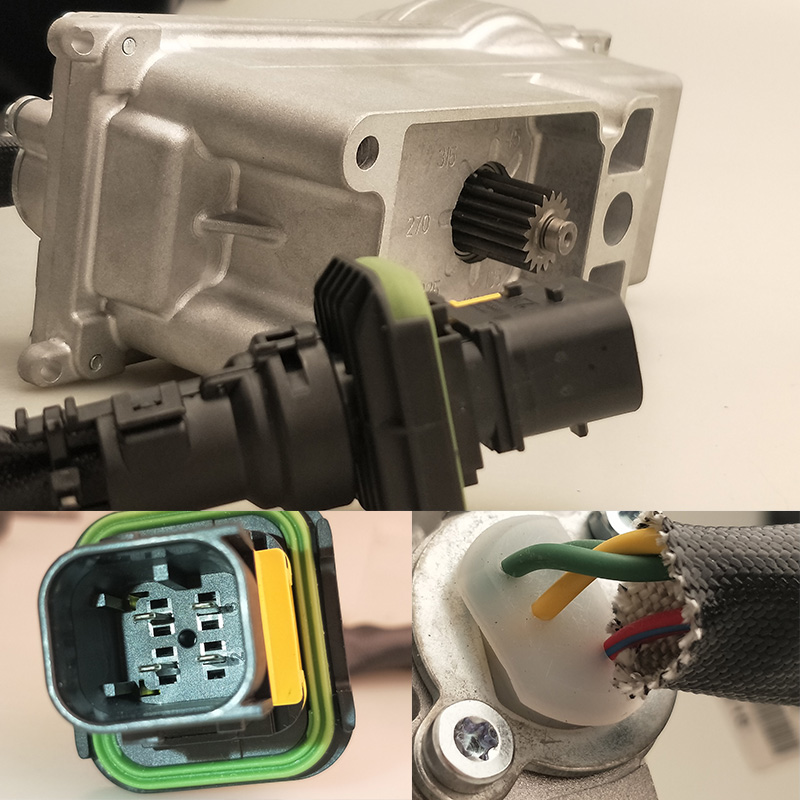

How to identify the correct Actuator for Holset replacement at order ? Click This
